FOG Probe - A digital, portable device for monitoring Grease Interceptor Levels
Product Code: AM-FOG-P-16

FOG Probe - A digital, portable device for monitoring Grease Interceptor Levels
FOG Probe - A digital, portable device for monitoring Grease Interceptor Levelsfog-probe-web3-drain-netfog-probe-web4-drain-netfog-probe-in-use
$1,250.00 each

This product ships in 3-4 weeks.

The only grease trap analyzer that is portable, fast, clean, and accurate.

Drain-Tech is proud to offer the first portable FOG probe designed to reliably and inexpensively measure the levels of FOG (fats, oil, and grease) in a grease interceptor. Based on measuring the electrical properties of the surrounding medium, there are no moving parts or expensive transducers. The result is a probe that can withstand the extreme physical and chemical environment of a grease interceptor. The AM-FOG probe consists of a chain of accurate sensors creating model lengths specific to operational needs/applications. Communicating via Bluetooth to an Android or iOS app, the AM-FOG enables complete control over the probe including: A bar graph showing depths of the FOG, water, and air layers

  • FOG percentage and Interceptor height
  • Temperature and battery life
  • A simple calibration of the probe in air and water
  • An easy to use diagnostic screen for troubleshooting

fog-probe how it works

FEATURES

  • Accurately measures 1” levels of FOG, water, and air
  • Portable probe can be taken anywhere
  • Bluetooth (BLE) connection to phone or tablet App
  • Probe length optimized for your process
  • Robust design with no electrode corrosion and low maintenance
  • Each probe comes with a carrying case that doubles as a reservoir for water calibration.

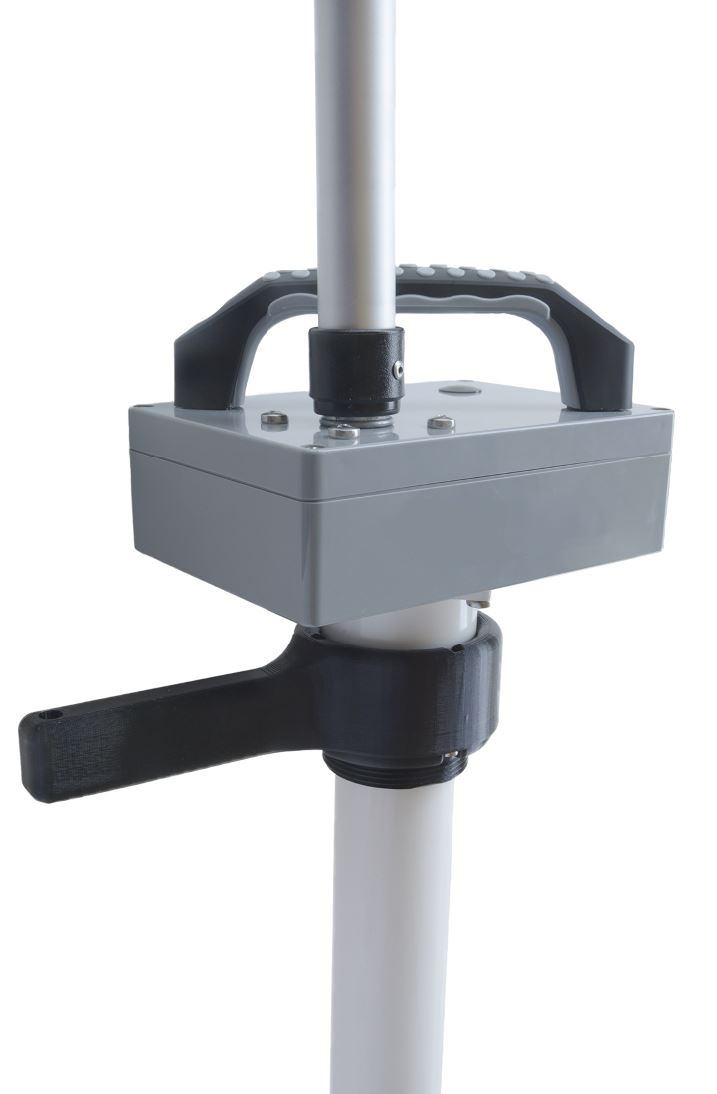

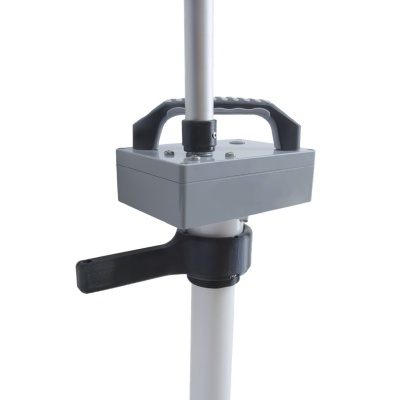

  • An integrated squeegee cleans the probe with one swipe

BENEFITS

  • Measures levels of FOG, water, and air by truly sensing, not sampling
  • Results are generated rapidly, shortening the overall inspection time
  • Simplified yet reliable calibration process ensures peak performance
  • Digital level readings can saved with GPS and site information
  • Novel operation keeps you clean and probe cleans easily with wiper

FOG Probe grease trap analyzer

INNOVATIVE MEASUREMENT

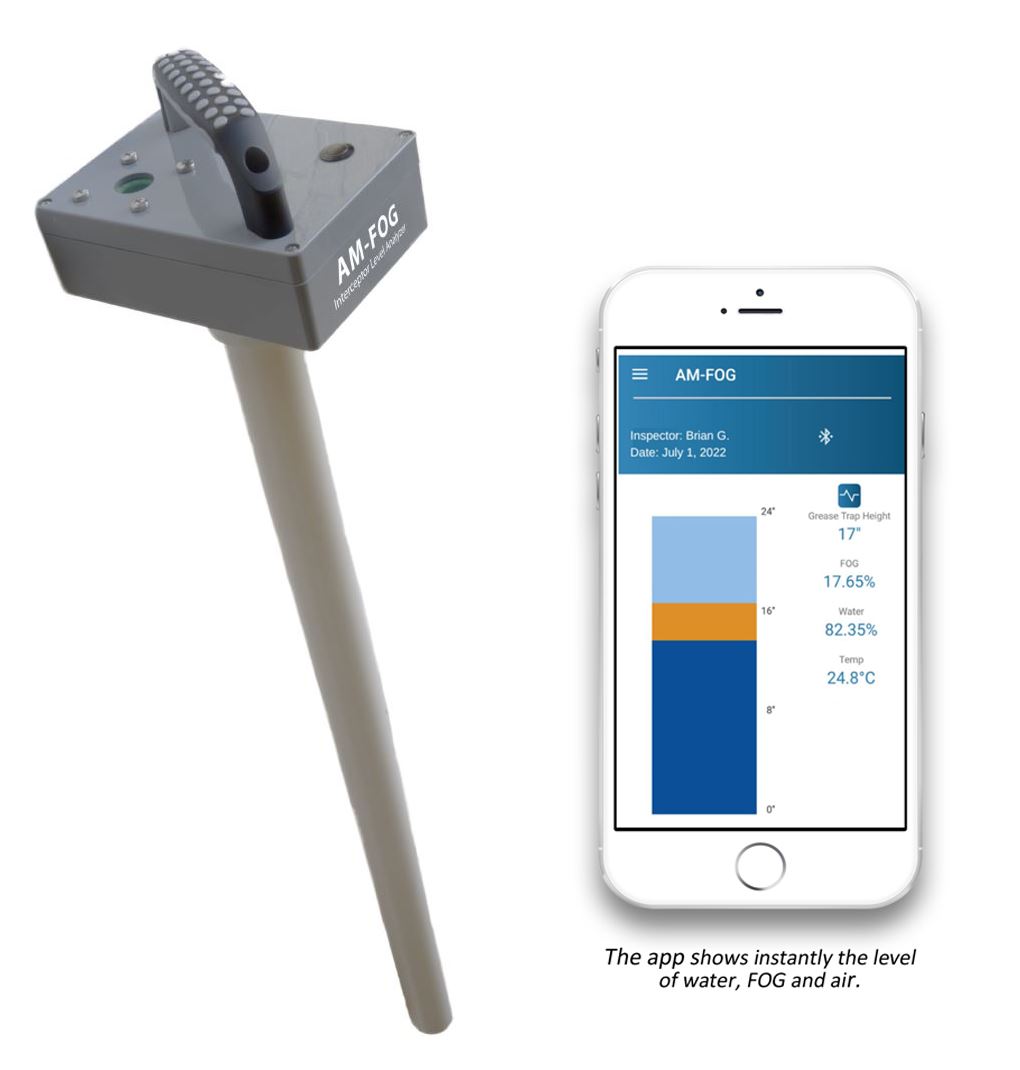

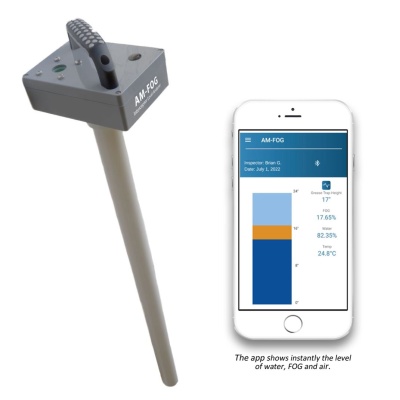

The AM-FOG probe consists of a chain of sensors creating model lengths specific to operational needs/applications. Communicating via Bluetooth to an Android or iOS app, the AM-FOG enables complete control over the probe including:

  • A bar graph showing depths of the FOG, water, and air layers
  • FOG percentage and Interceptor height
  • Temperature and battery life
  • A simple calibration of the probe in air and water
  • An easy to use diagnostic screen for troubleshooting

DESIGNED FOR THE MUNICIPAL INSPECTOR

No more dragging around core samplers that are time consuming, hard to read, messy and smelly.  The Bluetooth connection and the user-friendly app allow the inspector to quickly, and cleanly, visit multiple sites in a day.  Export data or screenshot function, simplifying integration into FOG management platforms.  Applications include:

  • Grease interceptors
  • Oil-water separators
  • Lift Stations

What Model do I need?

The only difference in models is the length of the probe. For accurate measurements, the FOG Probe length needs to be greater than the distance from the bottom of the trap to the surface of the trap liquids. The length of the probe can be made to any multiple of 16 inches, up to 64 inches, so that it can be configured for any grease interceptor (except for the very largest gravity interceptors). The embedded firmware senses the correct length and customizes the user interface on the cell phone app for any probe. Most in-ground concrete or fiberglass tanks are usually no more than 4 feet tall. The most popular sizes are 32", 40", and 48". The other lengths are made to order and will typically ship within 3-4 weeks. Choose the length that is optimal for your measuring! Please note the probe should not be submerged any higher than the top of the sensing tube.
