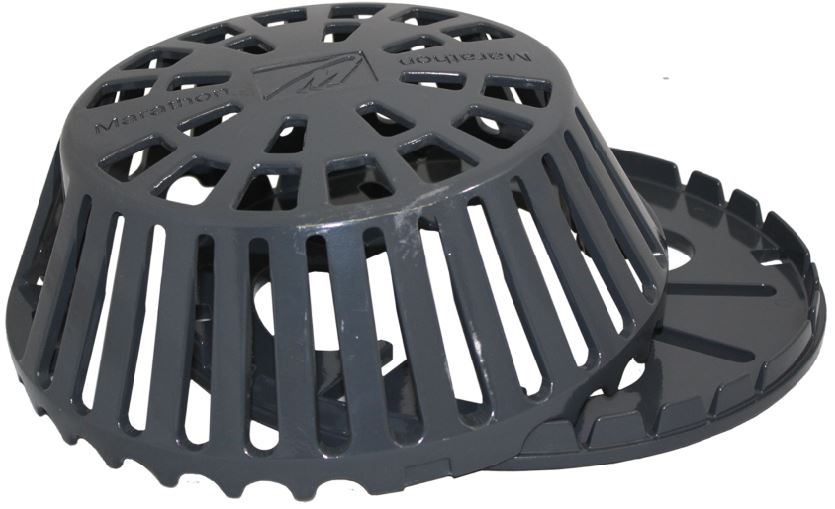

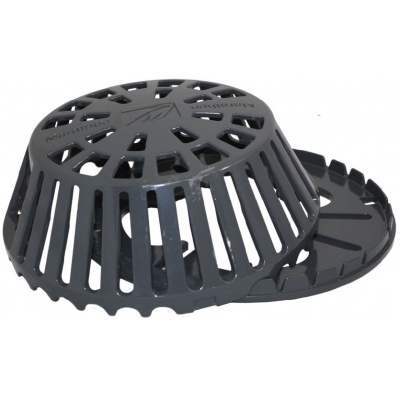

Versatile, Easy & Quick Replacement for Broken or Missing Roof Drain Domes & Rings. This is the Only Cast Iron Retrofit Ring & Dome available in the industry....Weighs 21 lbs !!!
The Retrofit Ring & Dome will match up to most old style existing drains.
Low Profile dome strainer with maximum drainage
Designed for re-roofing applications when a clamping ring is important to secure single-ply and two ply membranes in waterproof roof systems.
By aligning the Retrofit Ring over the existing bolt holes in the old drain body & installing the new hold-down bolts with washers, the difficult problem of replacing matching domes is resolved.
Twist-n-lock attachment, plus 2 bolts to secure to base ring. Vandal resistant.
V channel scallops openings on the ring and dome allow for maximum drainage
Ring and Dome may be purchased separately or in combination. Together they offer a positive fit with locked in and bolt-down features
Specs
Material: Cast Iron

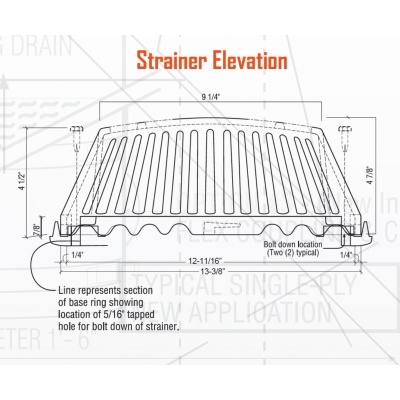

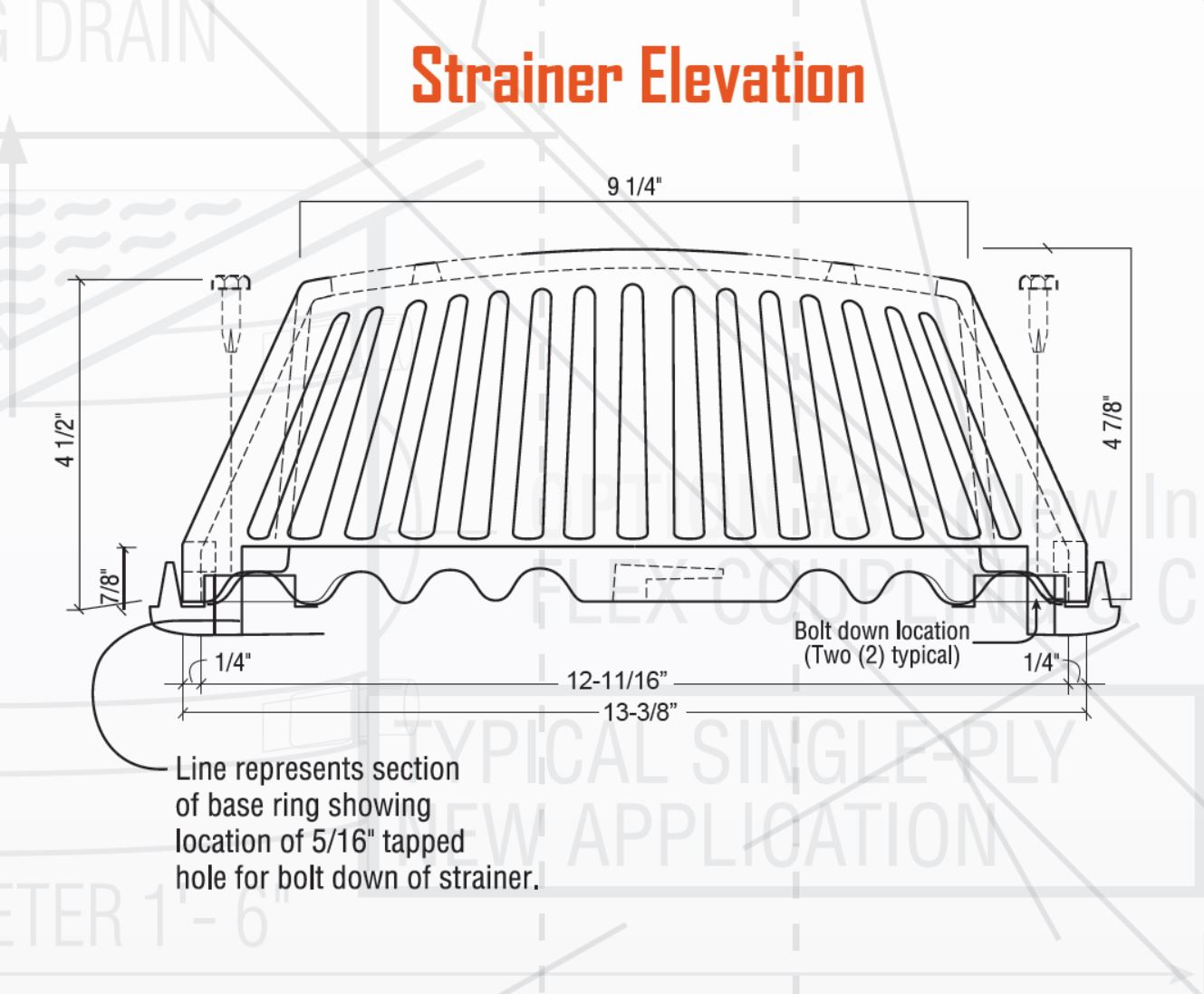

Drain Dome Size: 12 inch OD x 5 inch

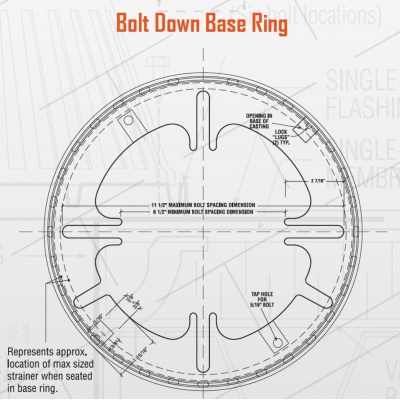

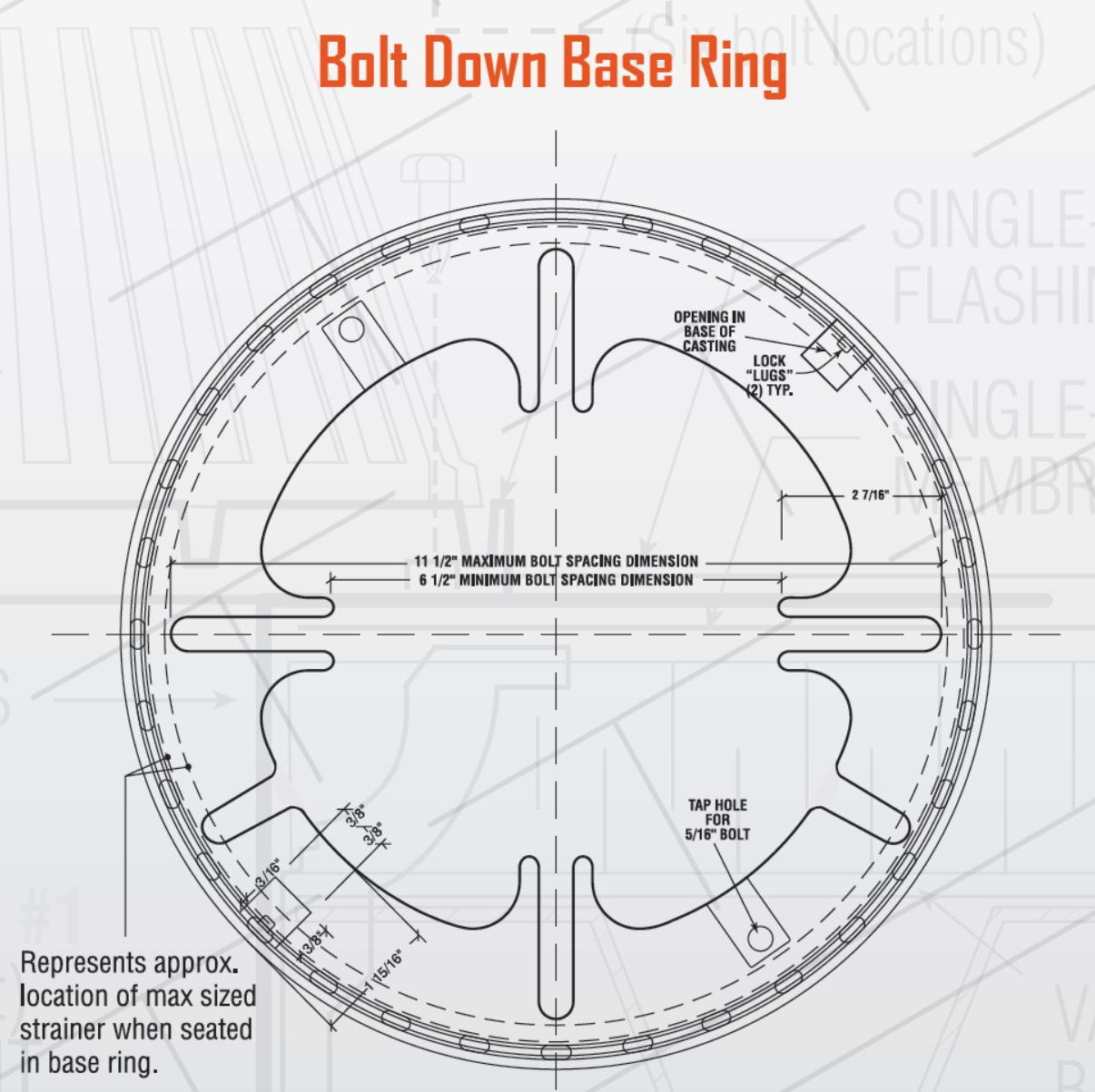

Fits three or four bolt patterns ranging from 6-1/2" to 11-3/4".
Versatile, Easy & Quick Replacement for Broken or Missing Roof Drain Domes & Rings. This is the Only Cast Iron Retrofit Ring & Dome available in the industry....Weighs 21 lbs !!!
The Retrofit Ring & Dome will match up to most old style existing drains.
Low Profile dome strainer with maximum drainage
Designed for re-roofing applications when a clamping ring is important to secure single-ply and two ply membranes in waterproof roof systems.
By aligning the Retrofit Ring over the existing bolt holes in the old drain body & installing the new hold-down bolts with washers, the difficult problem of replacing matching domes is resolved.
Twist-n-lock attachment, plus 2 bolts to secure to base ring. Vandal resistant.
V channel scallops openings on the ring and dome allow for maximum drainage
Ring and Dome may be purchased separately or in combination. Together they offer a positive fit with locked in and bolt-down features
Specs
Material: Cast Iron
Drain Dome Size: 12 inch OD x 5 inch
Fits three or four bolt patterns ranging from 6-1/2" to 11-3/4".
Versatile, Easy & Quick Replacement for Broken or Missing Roof Drain Domes & Rings. This is the Only Cast Iron Retrofit Ring & Dome available in the industry....Weighs 21 lbs !!!
The Retrofit Ring & Dome will match up to most old style existing drains.
Low Profile dome strainer with maximum drainage
Designed for re-roofing applications when a clamping ring is important to secure single-ply and two ply membranes in waterproof roof systems.
By aligning the Retrofit Ring over the existing bolt holes in the old drain body & installing the new hold-down bolts with washers, the difficult problem of replacing matching domes is resolved.
Twist-n-lock attachment, plus 2 bolts to secure to base ring. Vandal resistant.
V channel scallops openings on the ring and dome allow for maximum drainage
Ring and Dome may be purchased separately or in combination. Together they offer a positive fit with locked in and bolt-down features
Specs
Material: Cast Iron
Drain Dome Size: 12 inch OD x 5 inch
Fits three or four bolt patterns ranging from 6-1/2" to 11-3/4".
