Plastic Grease Trap 15 GPM / 30 LB
Product Code: D3915A02

15-gpm-grease-trap
$262.85 each

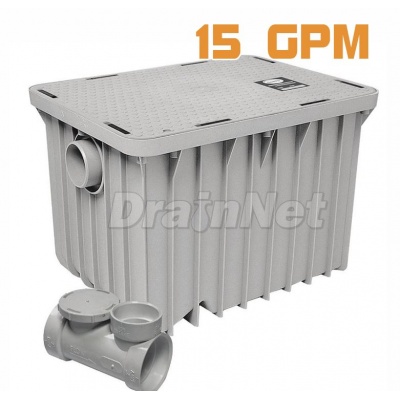

15 GPM Grease Interceptor with 30 LBS grease capacity.

Compact Grease Interceptor

Using our original patented design, the Plastic Grease Trap 15 GPM is typically installed in low flow applications such as food trucks, concession stands, and small kitchens. Supplied with our accessible flow control, this model offers durability and longevity of operation and features our EZ-Open cover latching system for quick, reliable access. NSF Certified to CSA B 481.1, ASME A112.14.3 & PDI G101. Compatible with stackable riser extension (3920AX6)

  • Tank, lid and baffles injection molded in high performance engineered thermoplastic that will not corrode, chip, or peel, even under the most severe applications
  • Compact footprint compared to traditional solutions.
  • Supplied with accessible flow control device (HxHxH) for solvent weld installation to ABS and PVC DWV systems
  • Maximum service temperature rated at 220 Deg F/104 Deg C continuous discharge.
  • Lightweight but highly durable construction offers ease of handling, installation and product longevity compared to traditional interceptors
  • EZ-Open cover latching system provides simple fastener free solution for regular maintenance access
  • Tank installed using mechanical joint couplings (by others), allowing for connection with various piping materials
  • 2" No-Hub connection compatible with DWV piping (most common, select 2" Hub option). Also available with 2" SPIGOT and 2" THREADED connections.
  • Cover exceeds CSA B481.0 Class L - Proof load min. 600lb (270kg). Expected service load Max 300lb (135kg)
  • Recessed silicone seal prevents foul odors from escaping in service
  • 10 Year Limited Manufacturers Warranty

Specifications of Model D3915A02

  • Flow Rate: 15 GPM (Gallons Per Minute)
  • Connection type for endura grease trapsMin. Grease Capacity - 30 lb (13.6 kg)
  • Grease Capacity Actual (ASME A112.14.3) - 35.14 (15.94 kg)
  • Average Efficiency % (ASME A112.14.3) - 90.1%
  • Operating Temperature Capabilities  - 220° F (104° C)
  • Cover Load Rating 300 lb (135 kg)
  • Min. Test Load for Approval: 600 lb (270 kg)
  • Unit Weight: 23 lbs (10.4 kg)
  • Liquid Capacity: 21.6 gal (81.8L)
  • Connection size (mechanical joint only): 2"
  • Bottom of unit to center of inlet/outlet: 12.8"
  • Dimensions: 23.6" Length X 17.5" Width X 16.3" Height

15 GPM Specs15  GPM diagram

Resources



Grease Trap PDI certification

Drain-Net represents Zurn and other manufacturers who have obtained PDI Certification for the following products: click here
