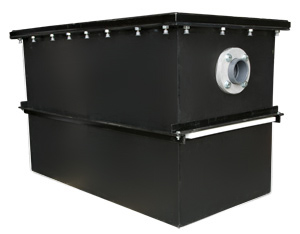

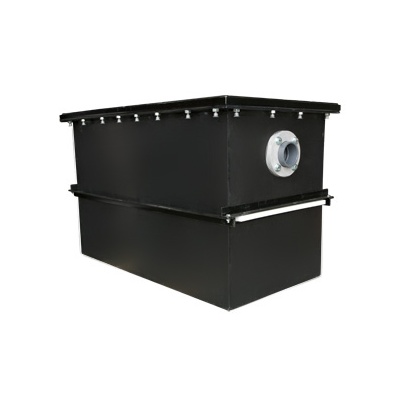

150 GPM Grease Interceptor with 375 LB grease capacity.

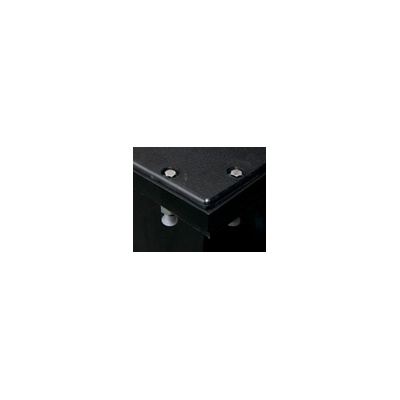

The Drain-Net APGI Series Grease Interceptor is designed to separate grease, oils, fats, and other sediment from large Commercial and Industrial sources. Made of seamles High Density Polyethylene (HDPE), the APGI series interceptor is lightweight, cost efficient, extremely durable and corrosion free. Non skid 3/4” poly covers with recesed handles are standard, but all units are available with steel non-skid tread plates for traffic areas. The HDPE construction is acid resistant and solids do not easily adhere to the smooth walls, making cleaning effortless.
• Above or below ground installation
• 1/4" Steel Cover for pedestrian traffic
• Bolt on Extension

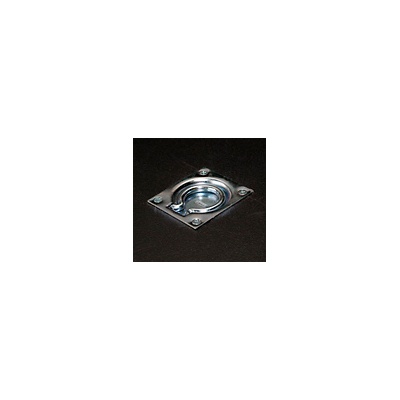

• Recessed Lift Handles.

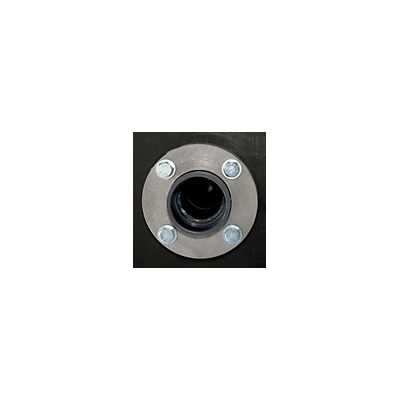

• Standard Connection Size: 4"
• Optional Connection Sizes 2, 3 and 5 inch
• PVC glued connections are standard.
• HD Braces for above ground installation.
Special sizes available to fit through narrow passages or existing walkways. Special units also available to meet larger capacities, including systems that utilize series and/or parallel interceptors. Straight through, left, and right hand models available.
Shipping: Ships free to the lower 48 states. Most units ship in 5 to 7 business days. Customizations such as legs or risers require an extra 2-3 days. A liftgate is highly recomended for delivery. All units are custom made in the USA!

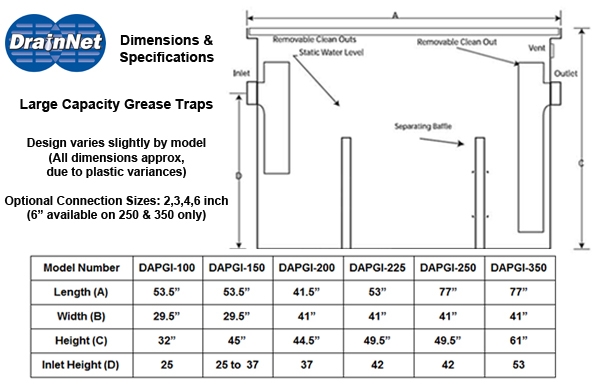

Specifications of Model DAPGI-150
• Flow Rate: 150 GPM**
• Grease / Sludge Capacity: 250 to 378 lbs
• Approximate Weight: 350 lbs
• Standard Inlet / Outlet: 4" (other connection sizes available)
• Bottom of unit to center of inlet/outlet: 25" to 40" (Adjustable inlet/outlet to provide an integral extension)
• Liquid Holding Capacity: 125 to 186 gal
• Dimensions: 53.5" Length X 29.5" Width X 45" Height
• Legs or risers can be added for underground installation. Call for quote.
*This size not recognized yet by PDI/UPC/IAMPMO
Click here to view and download the spec sheet
